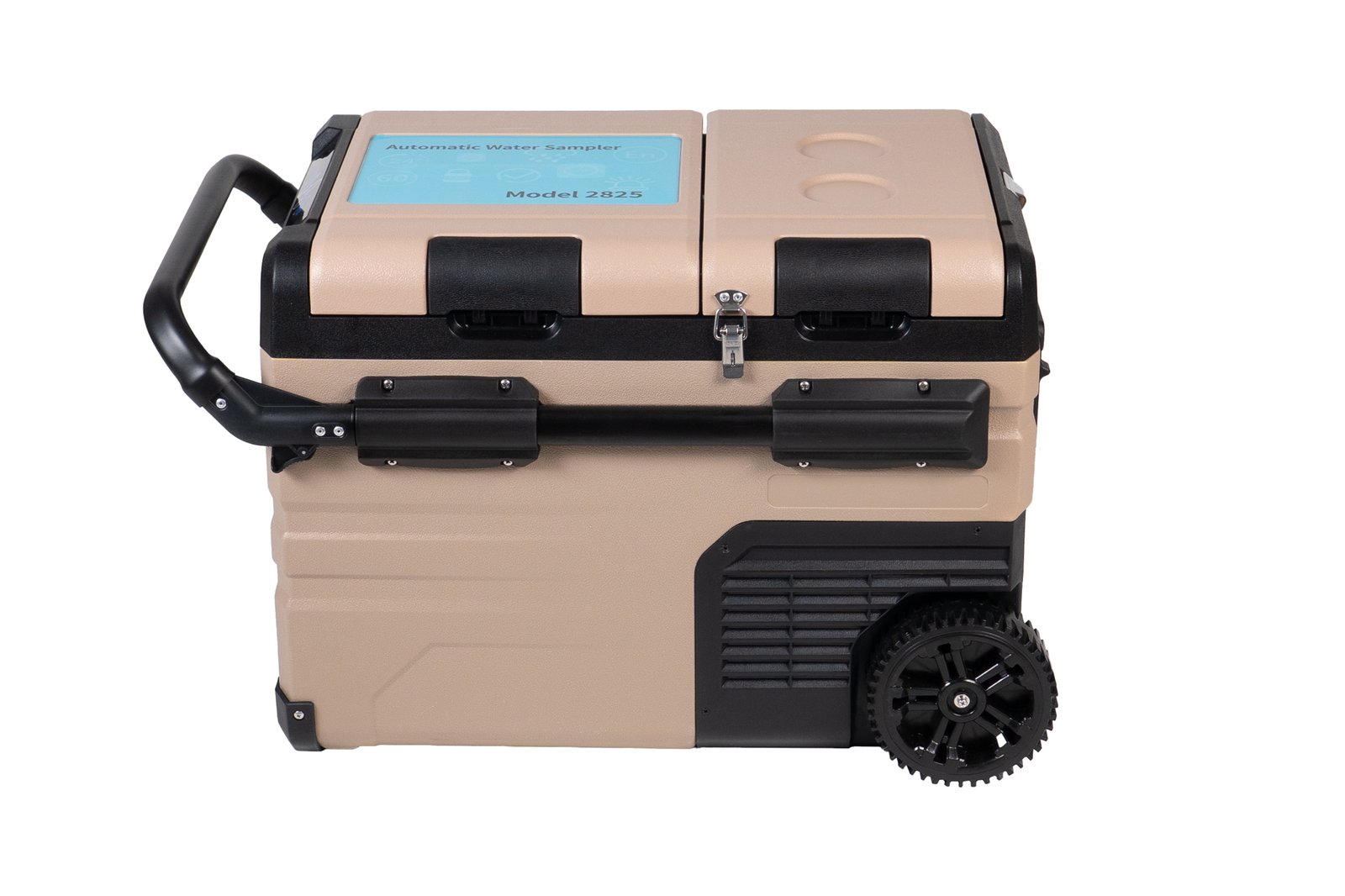

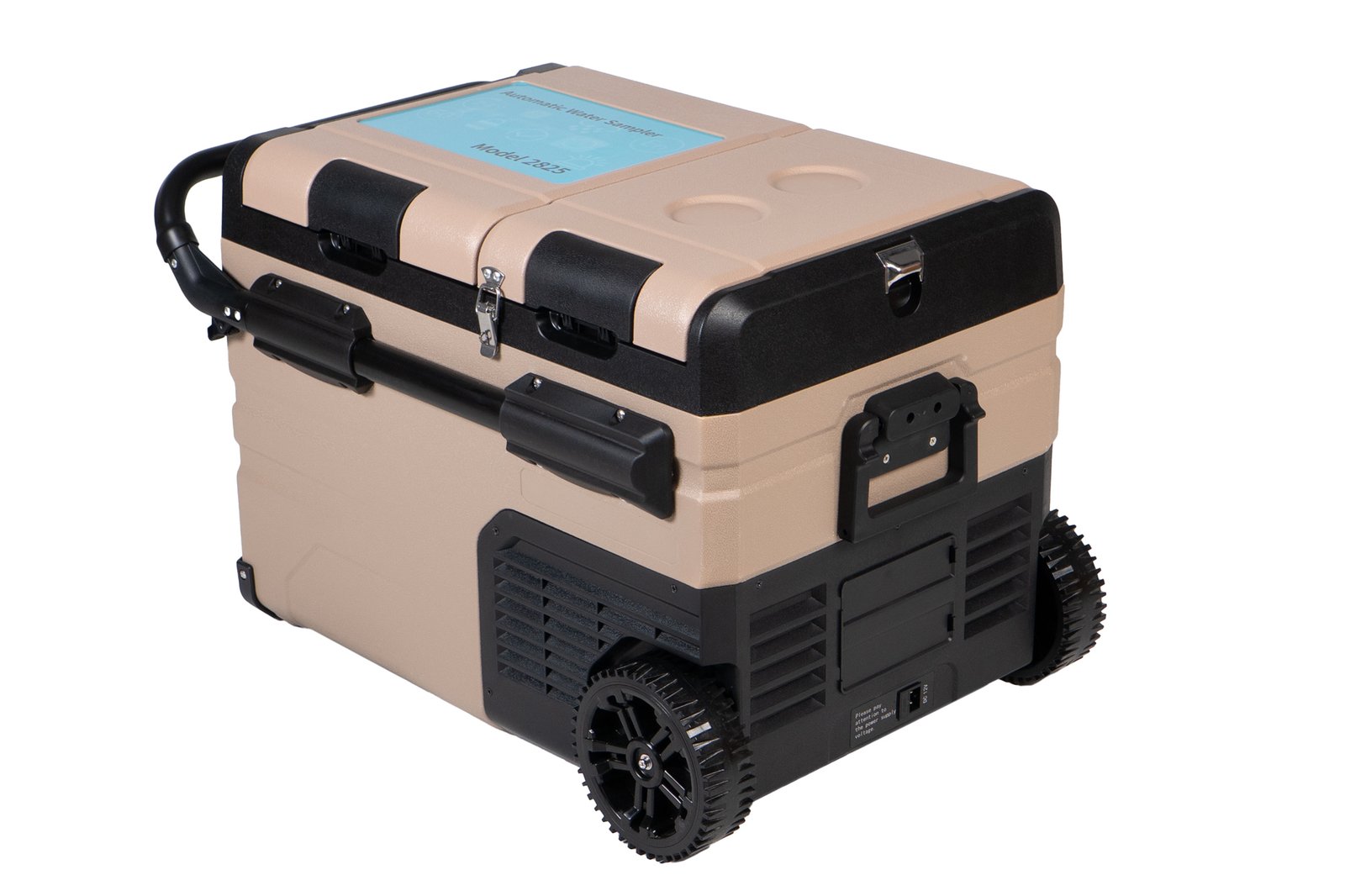

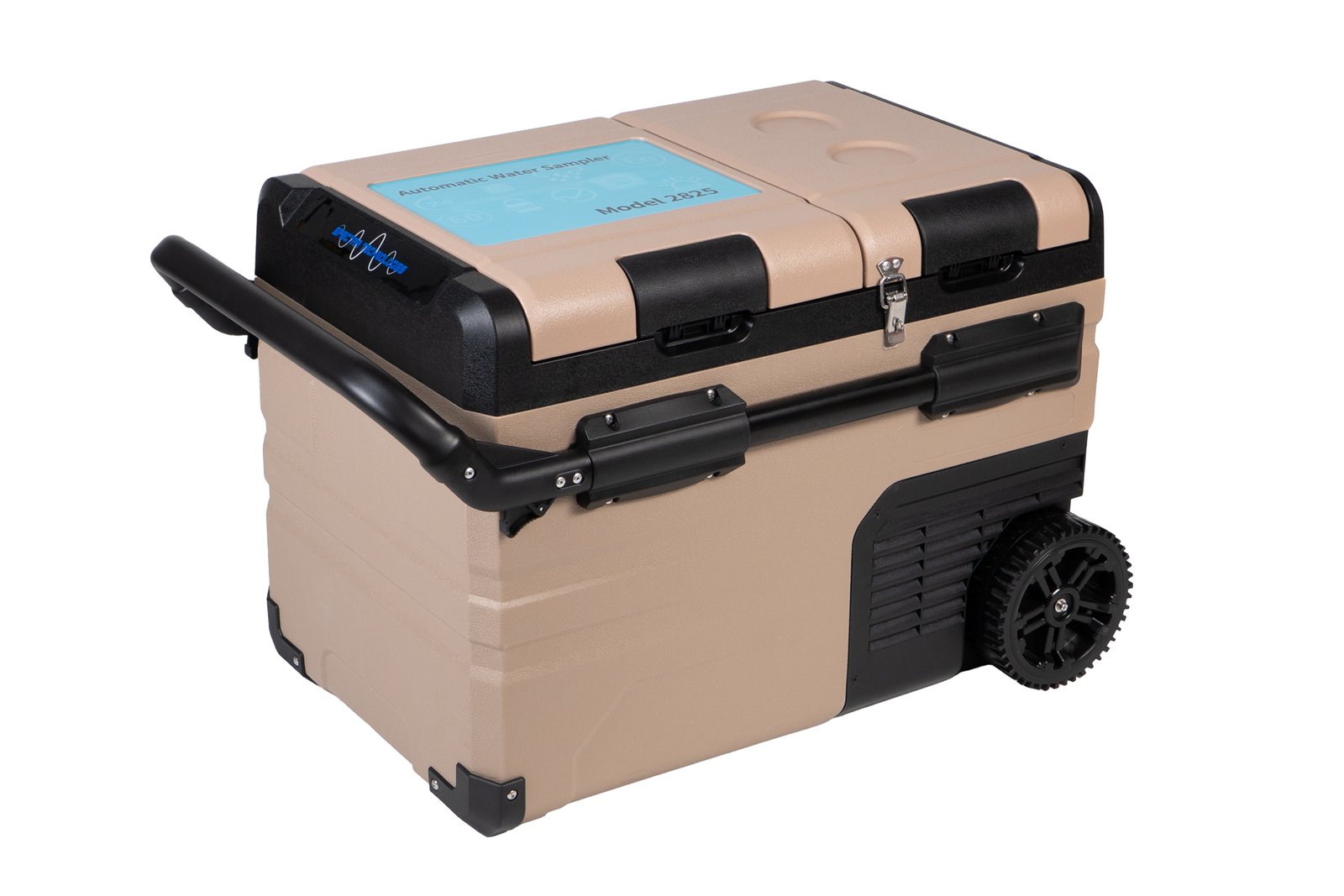

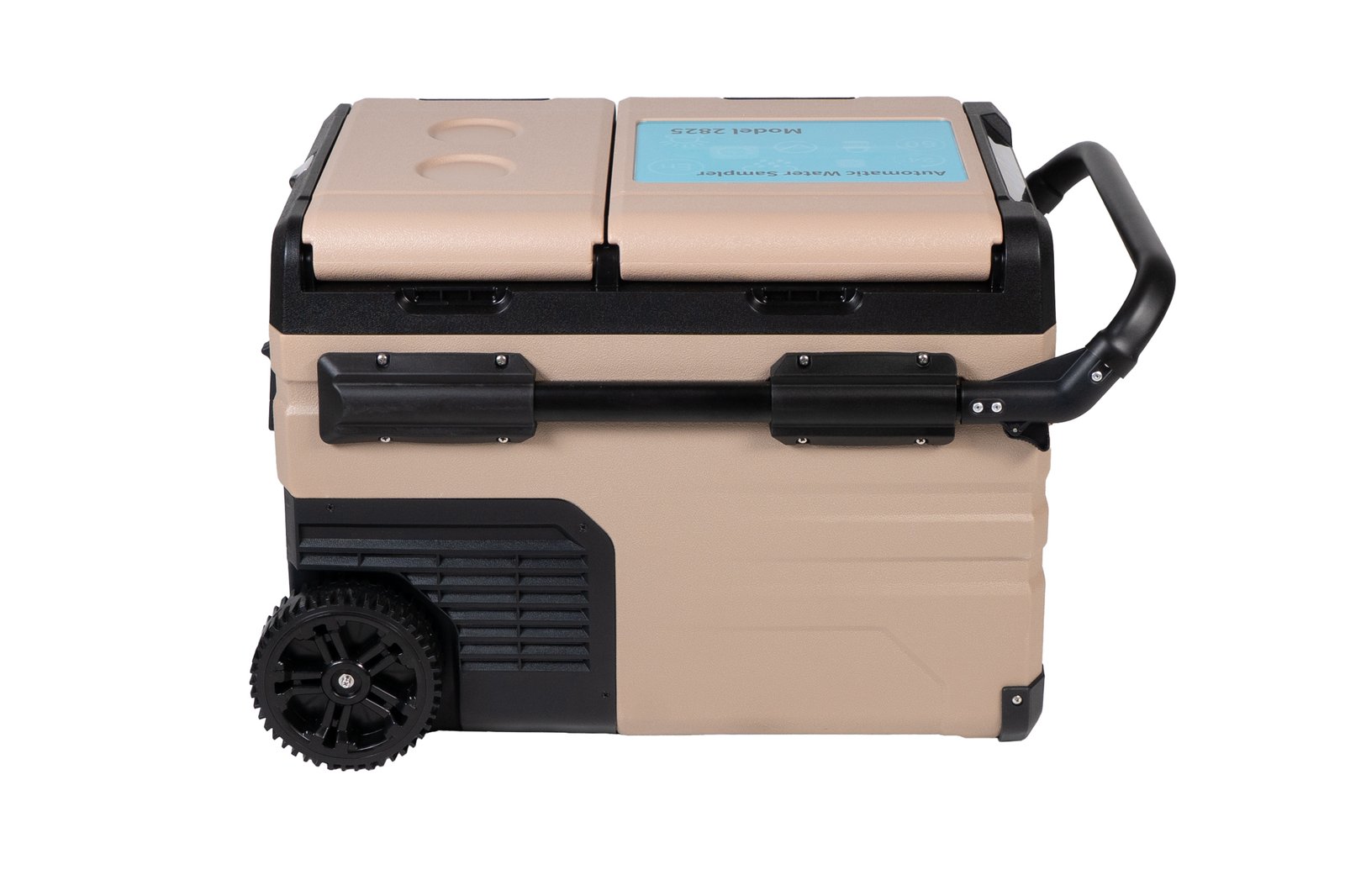

The Spectra Technologies 2825 Series portable\dedicated automatic water sampler is the next generation in water sampling technology. An advanced refrigeration and heating system is incorporated into the design of the unit. This configuration allows the user to use the sampler year around. Sample when outdoor temperatures are below freezing, no more hauling ice when the weather is warm. The 2800 Series can be left in place when ambient air temperature ranges from -25o F to 122oF. An automated heating and cooling system monitors environmental temperatures and will select the proper cooling or heating system that is required to maintain sample integrity. A pump\electronics compartment heater maintains proper operating temperature as well as prevents the internal pump tubing from freezing. This fully programmable unit allows the user to select from a list of sampling methods including time based, flow based, level based or rain gauge-based options.
Benefits of a Portable Refrigerated Automatic Water Sampler
Benefits of a Portable Heated Automatic Water Sampler
Customer Testimonial
The biggest issue we have had with portable samplers is hauling ice every day or two to remote locations. Weekends were a big problem. The Spectra 2800 is the best solution for this problem. The refrigeration unit keeps our samples at specified temperature, even on the hottest days.
– TL, Chief Operator, Municipal Wastewater Treatment Plant
Note: This item may require 2-4 weeks to ship due to high demand.
Spectra 2825 Series Heated & Refrigerated Portable Automatic Water Sampler Specifications
| Collection System | Composite type collection system |
| Sampling Methods | Time-based, flow-based, level-based and rain gauge-based sampling |
| Pump Type | Peristaltic pump |
| Pump Flow Rate | 0.75 GPM (3.4 L/min) |
| Maximum horizontal lift | 80m |
| Maximum vertical lift | 8m |
| Sampling Error | ±2% |
| Repeat Sampling Accuracy | ±5 mL |
| Horizontal Suction Head | Up to 164 ft (50 m) |
| Sample Bottle Capacity | 7,000 mL |
| Display | 7 in. × 5 in. sunlight-readable touchscreen |
| Sampling Tube | Automatic rinse and purge function |
| Data Logging | Integrated data logging for sample, alarm, rainfall and other analytical data |
| Memory | Non-volatile memory maintains program and data-logger information during power loss |
| Program Security | Password protection can be enabled to prevent unauthorized program modification |
| Pipeline Air Tightness | ≤ -0.085MPa |
| Mean Time Between Failures (MTBF) | ≥ 1,440 hours |
| Insulation Resistance | >20 MΩ |
| Operating Temperature | -25°F (-31.6°C) to 122°F (50°C) |
| Power | 120 VAC with adapter; 12/24 VDC; direct 12 V battery; optional solar panel |
| Power Consumption | 77 W |
| Dimensions | 25.42” (647mm) (L)×15.7” (400mm) (W)×17.36” (441mm) (H) |
| Weight | 20 kg (approximately 44 lb) |
